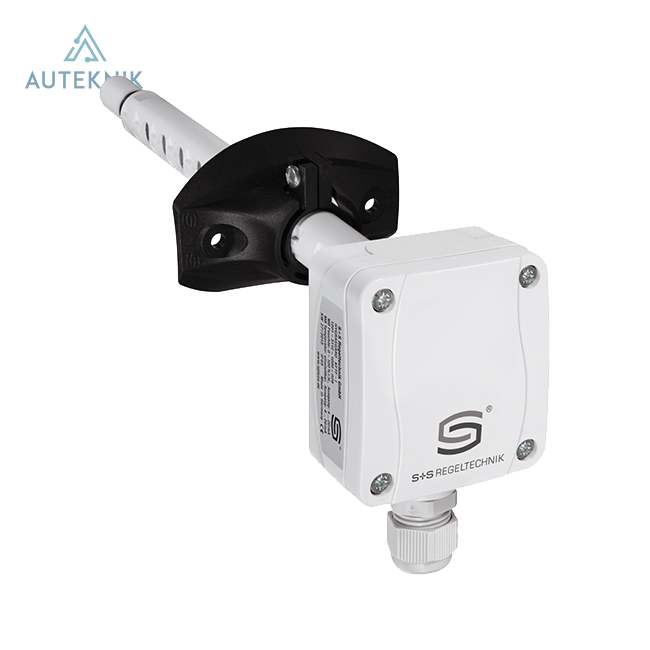

KAVTF-I

https://www.auteknik.com/web/image/product.template/15462/image_1920?unique=e890d9e

BRAND: S+S REGELTECHNIK
DEVICE TYPE: TRANSMITTER
MEASUREMENTS: TEMPERATURE / HUMIDITY
COMPATIBILITY: CURRENT SIGNAL(4…20mA)
POWER SUPPLY: 24VDC
HOUSING FEATURES: PLASTIC HOUSING
ADDITIONAL FEATURES: SELECTABLE HUMIDITY PARAMETER
ADDITIONAL DESCRIPTION: RELATIVE HUMIDITY / ABSOLUTE HUMIDITY / DEW POINT / ENTHALPY / RH ACCURACY 2%
MEASURING RANGE: –35...+80 °C / 0...100 % RH
FACTORY SETTINGS: +0…+50°C
PROBE LENGTH: 200MM
PROBE THICKNESS: 20MM
MEASUREMENT TYPE: PROBE MEASUREMENT
APPLICATION: AIR
INSTALLATION LOCATION: HVAC-PROCESS / AIR VENTILATION
MOUNTING: DUCT

Login to see price

Not Available For Sale

  • Brand
  • Device type
  • Primary measurement
  • Measurable quantities
  • Measuring range
  • Measuring range
  • Factory settings
  • Installation location
  • Installation location
  • Measurement type
  • Probe length
  • Wired connectivity
  • Probe thickness
  • Wireless connectivity
  • Application
  • Mounting
  • Power supply
  • Protection type
  • Housing features
  • Additional features
  • Display

This combination does not exist.

Contact Us
Brand: S+S REGELTECHNIK
Device type: TRANSMITTER
Primary measurement: HUMIDITY
Measurable quantities: TE / RH
Measuring range: –35...+80 °C, 0...100 % RH
Factory settings: +0…+50°C
Installation location: HVAC-PROCESS, AIR VENTILATION
Measurement type: PROBE
Probe length: 200MM
Wired connectivity: 4...20mA
Probe thickness: 20MM
Wireless connectivity: NO WIRELESS CONNECTIVITY
Application: AIR
Mounting: DUCT
Power supply: 24Vdc
Protection type: IP65
Housing features: PLASTIC HOUSING
Additional features: SELECTABLE HUMIDITY PARAMETER
Display: WITHOUT DISPLAY
Tuotenimi / Viivakoodi: :
KAVTF-I / 1201-3162-6000-029
