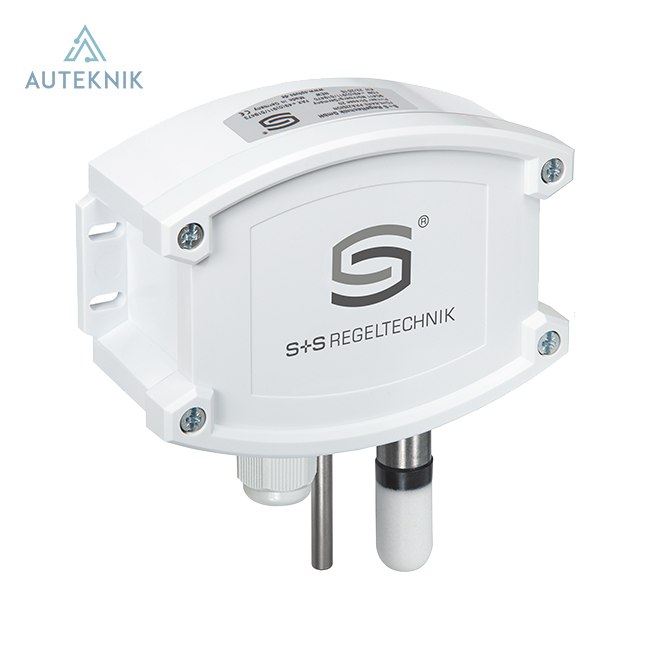

AFTF-35-I/W

https://www.auteknik.com/web/image/product.template/15503/image_1920?unique=7e8417e

BRAND: S+S REGELTECHNIK
DEVICE TYPE: TRANSMITTER
MEASUREMENTS: TEMPERATURE / HUMIDITY
COMPATIBILITY: CURRENT SIGNAL(4…20mA) / RELAY
POWER SUPPLY: 24VAC/DC
HOUSING FEATURES: WHITE / PLASTIC HOUSING / SENSOR ELEMENT OUTSIDE THE HOUSING
ADDITIONAL FEATURES: SELECTABLE HUMIDITY PARAMETER
ADDITIONAL DESCRIPTION: RELATIVE HUMIDITY / ABSOLUTE HUMIDITY / DEW POINT / ENTHALPY / RH ACCURACY 3%
MEASURING RANGE: –35...+80 °C / 0...100 % RH
FACTORY SETTINGS: +0…+50°C
MEASUREMENT TYPE: CONDITION MEASUREMENT
APPLICATION: AIR
INSTALLATION LOCATION: TECHNICAL ROOM / OUTDOOR AREA / REFRIGERATED ROOM / HIGH HUMID AREA / AIRLOCK ENTRANCE / CARAGE
MOUNTING: WALL

Login to see price

Not Available For Sale

  • Brand
  • Device type
  • Primary measurement
  • Measurable quantities
  • Measuring range
  • Measuring range
  • Factory settings
  • Installation location
  • Installation location
  • Installation location
  • Installation location
  • Installation location
  • Installation location
  • Measurement type
  • Wired connectivity
  • Wired connectivity
  • Wireless connectivity
  • Application
  • Mounting
  • Power supply
  • Power supply
  • Protection type
  • Housing features
  • Housing features
  • Housing features
  • Additional features
  • Display

This combination does not exist.

Contact Us
Brand: S+S REGELTECHNIK
Device type: TRANSMITTER
Primary measurement: HUMIDITY
Measurable quantities: TE / RH
Measuring range: –35...+80 °C, 0...100 % RH
Factory settings: +0…+50°C
Installation location: TECHNICAL ROOM, OUTDOOR AREA, REFRIGERATED ROOM, HIGH HUMID AREA, AIRLOCK ENTRANCE, CARAGE
Measurement type: CONDITION MEASUREMENT
Wired connectivity: 4...20mA, RELAY
Wireless connectivity: NO WIRELESS CONNECTIVITY
Application: AIR
Mounting: WALL
Power supply: 24Vac, 24Vdc
Protection type: IP65
Housing features: PLASTIC HOUSING, WHITE, SENSOR OUTSIDE THE HOUSING
Additional features: SELECTABLE HUMIDITY PARAMETER
Display: WITHOUT DISPLAY
Tuotenimi / Viivakoodi: :
AFTF-35-I/W / 1201-714B-1000-000
